Golden West

About This Claim

Patented Gold Properties

A Known Gold Deposit on Patented Property in Arizona!

Out in the mountains of La Paz County, Arizona, lies the Golden West property, a group of two patented mining claims that settled just Southwest of the old Planet Mine, a mine renown for its beautiful, crystalline-copper chalcanthite specimens. Chasing the same copper-gold veinlets as the Planet Mine from the five kilometer-long Buckskin Detachment, drilling and assay work on the Golden West property has revealed a known deposit of 12,000 oz of gold & its own crystalline copper!

The Geology

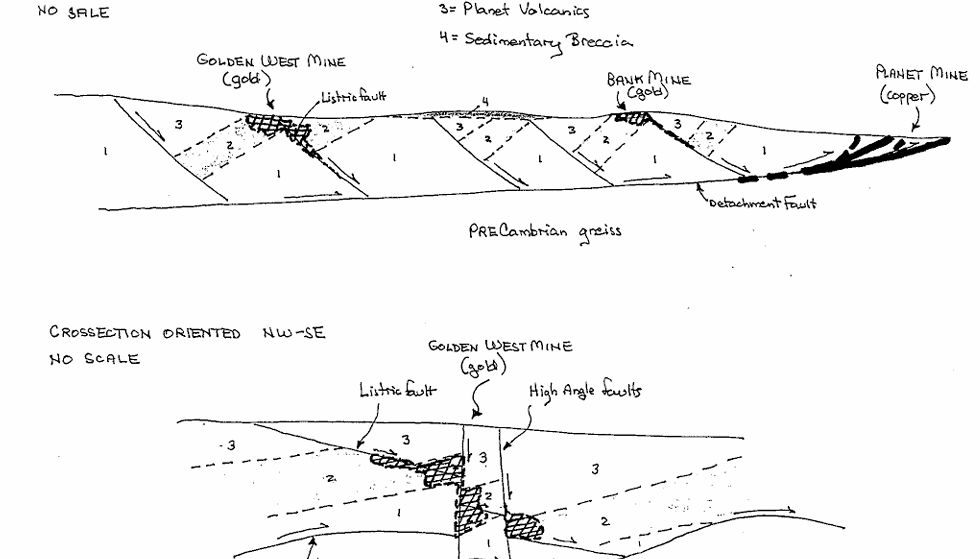

Drilling of the property revealed that the structure of the geology on the Golden West property is unique and pleasantly predictable. The richest gold values are found within the fractures found between three separate rock formations, caused by three different faults: the main fault, known as the Buckskin Detachment, caused a large swath of rock to detach from the lower crust and travel over five kilometers over an another, older rock formation: a Precambrian gneiss formation. After this large horizontal rock sheer, a combination of two types of high-angle listric faults striking from two different directions created weaknesses in the Earth’s crust that make an excellent environment for gold and copper deposits to bubble up to the surface.

The vertical veinlets springing up from the bottom of the Buckskin Detachment are gold-rich, easy to find, and easy to mine through open-pit methods. But the lack of a deeply sunken shaft (~430-440 ft) hasn’t allowed for horizontal drilling and assay work into horizontal fracture between the Detachment and the underlying gneiss. This unexplored zone is likely the genesis of the small veinlets springing up from the various listric faults found closer to the surface, similar to the Briggs Mine. While speculative, it stands to reason that this unexplored zone could hold greater gold values than the surface deposits of Golden West property — if only someone could get down there to find out!

Hematite found on the surface. Gold is found mixed together with this bright red rock!

Other patented mining claim holders to the Northeast, leading up to the Planet Mine, also sit on ground with more or less the same gold values as the Golden West property. If a deal could be struck combining the two properties, far more than just 12,000 oz of surface-layer gold could be pulled out of this one location!

Read the Reports

This property has a lot more to say for itself, and don’t just take my word for it! Read the reports from geologist Mike Brady and mining engineer Joe Sawyer and discover in not-too-easy English exactly what lies beneath the ground.

Drilling and assaying results are attached within reports.

• August 1st, 1996, Mike Brady (Geologist) Report
• September, 2001, Joe Sawyer (Mining Engineer) Report

ADDITIONAL REPORTS AVAILABLE UPON REQUEST
Including Drill Reports and Nearby Sections Available for Expansion Opportunities
Serious Inquires Only Please!

Contact Us Anytime for this Data

Features of the “The Golden West & Golden West No.1” Property at a Glance

• Patented Ground – With private, exclusive rights to the ground, the property isn’t subject to most Federal regulations like normal, unpatented mining claims are. Have the freedom to mine the gold your way!
• Well-Surveyed Geological Structure – The fractures between the main Buckskin, Vampire, and Volcanic formations are known to provide the most gold-rich deposits on shallow, accessible ground.
• A Known Deposit – With 12,000 oz of gold known to be on the Golden West patents, all the property needs is the right man with the right equipment to come and get the gold! What’s more, the gold-heavy pockets above the Buckskin formation heavily suggest additional gold to be found along the detachment fault line – if only someone could get deep enough to find out!
• Expansion Opportunities – Expansion downward onto the main Buckskin Detachment’s shelf and horizontally drilling into the rock formation or negotiating with other patent holders to the Northeast to allow for expansive, shallow surface mining gives the holders of the Golden West property options beyond what initially meets the eye.
• Easy to Find – Whether you’re chasing the turquoise-colored copper veinlets for beautiful mineral specimens or getting the gold out of bright red hematite-clays, the gold here isn’t hiding – it’s in plain sight and easy to find!
• Easy to Leach – With little to no silification present, encapsulated gold concerns are not an issue! A basic bottle-roll, cyanide-leach on oxidized gold in hematite-clays showed ~95% gold recovery in short 48-hour leach cycles.
• Moderate Accessibility – The Buckskin Mountain Range is surrounded by paved roads, but the roads leading into the Golden West property are dirt roads of variable quality. A good four-wheel drive vehicle could easily access the site, but sedans and other roadsters might find access difficult.
• Accessible Water Sources – There’s plenty of water within five miles of the claim; Ensuring your mining adventure doesn’t run dry is a cinch!
• A Quiet Spot – 115 miles away from the center of Phoenix but mere miles from Lake Havasu, the Golden West property is close enough for day trips but remote enough to not have strangers wandering onto your operation – who needs watchmen?

If you’re interested in purchasing this patented Arizona gold claim for sale, please email me here.

The Golden West & Golden West No.1 Main Features

Type of Claim	Patented Lodes; MS-No.4619 / AZAR 0034604
Size of Claim	41.21 ACRES
Mining Commodities	Gold, Copper
Accessibility	Dirt Roads
Closest City	Parker, Arizona
Camping	Yes. Up to 14 days at a time
Prior Workings	Some
Cell Phone Reception	Spotty to None
Type of Deposit	Shallow Lode

Claim Boundaries, Location Map and GPS Coordinates

The Four Corners

Golden West

NE	34.236135°, -113.980621°
NW	34.235106°, -113.982116°
SE	34.233044°, -113.977380°
SW	34.231968°, -113.978890°

Golden West No.1

NE	34.235199°, -113.974366°
NW	34.232505°, -113.978132°
SE	34.233946°, -113.973075°
SW	34.231263°, -113.976839°

• View the claim on the interactive map

Economic Information About the Deposit and Operations

Operation type	Patented Lode
Development status	Surveyed, Underdeveloped
Commodity type	Gold, Copper
Deposit size	Estimated ~12,000 oz

Mining District

District Name	Santa Maria Mining District, La Paz County
Deposit MAS/MILS ID	Angelus Mine (near property): MRDS #10235071

Geologic Structures

Type of Structure	Jurassic Volcanic Rock
Structure Description	(MAJOR) Sedimentary > Clastic > Conglomerate Igneous > Volcanic > Felsic-volcanic > Rhyolite (Pyroclastic-tuff) Sedimentary > Clastic > Sandstone Minor Metamorphic > Metasedimentary > Metaclastic > Quartzite

The Golden West & Golden West No.1 Mineral Rights Transfer Process

A patented mining claim is private property, conveying full title to both the surface and the minerals. As a form of real estate, it is a tangible asset that documents ownership of all mineral interests within its boundaries. Patented claims may be bought, sold, or used as collateral in the same manner as other privately held land.

Ownership of a patented mining claim can be conveyed in whole or in part through a standard real-property deed—such as a quitclaim deed—which can be recorded with the appropriate county office. Patented claims may also be leased, traded, gifted, or passed on through inheritance. If you have questions about completing a transfer, you may contact us at any time.

This patented mining claim remains valid indefinitely.

Purchasing “The Golden West & Gold West No.1”

UPDATE 2/25/26:
OUR MOTIVATED SELLERS HAVE REQUESTED A PRICE REDUCTION
WAS $500,000

• Full mineral rights transfer for “The Golden West & Gold West No.1” 41.21 Acre Lode Mining Claim.
• Official certificates of location, claim locations and digital maps.
• Email based support for claim maintenance and questions.

Need help purchasing this patented Arizona gold claim for sale?

Email me for more information and additional payment options.

After your purchase is complete you will be requested to fill out our new claim owner form with your name/address or add any additional claimants you want on the claim.

You’ll get digital copies of your COL and Map of Location in to your claim(s) will be delivered via email via PDF format as well as Google Earth™ KMZ map file with your claims discovery, corners and points of interest.

What Is a Patented Mining Claim?

The Golden West is a patented lode mining claim — a rare and valuable type of mineral property. Unlike unpatented claims, where the federal government retains surface title and the claimant holds only mineral rights, a patented claim grants full fee-simple title to both the surface and the minerals. This means you own the land outright, just like any other piece of real estate.

Because no new patents have been issued since 1994, patented claims are a finite and appreciating asset. They require no annual BLM assessment fees, can be used as collateral, and transfer through a standard warranty deed rather than a quitclaim deed.

Mineralization & Commodities

The Golden West patented claim is located in La Paz County, Arizona, a region with a long history of gold and copper production. The claim’s 41.21 acres provide substantial ground for exploration and development.

Primary and secondary commodities on this claim include:

La Paz County is part of Arizona’s extensive mineral province, with numerous historic gold and copper mines in the region. The area’s geology features Precambrian metamorphic and volcanic rocks with associated intrusion-related mineralization.

Geology & Setting

The Golden West claim is situated in western Arizona's mineral-rich desert terrain. The claim area is characterized by:

• Full fee-simple title — you own the surface AND the minerals
• Volcanic and metamorphic host rocks with known mineralization
• Gold and copper mineralization in vein and disseminated deposits
• Desert terrain with year-round access
• Historic mining activity in the surrounding region

As a patented claim, the Golden West offers the ultimate in security and flexibility for the owner. Build structures, drill, mine, or simply hold as an appreciating tangible asset.

Claim Features at a Glance

• 41.21 acres of patented lode ground — full fee-simple title
• No BLM annual fees — patented claims require no maintenance payments
• La Paz County, Arizona — established mining region
• Gold & copper potential
• Transfer by warranty deed — just like real estate
• Can be used as collateral, developed, or held as investment
• All transfer fees included in sale price

About Patented vs. Unpatented Claims

Patented mining claims represent a unique class of real property in the American West. Here's how they differ from unpatented claims:

• Ownership: You hold full fee-simple title — surface AND minerals
• Transfer: Standard warranty deed, recorded like any real estate transaction
• Fees: No annual BLM assessment fees ($0 vs. $200/year per 20 acres)
• Development: You can build permanent structures, drill wells, install infrastructure
• Financing: Can be used as collateral for loans, just like any real property
• Rarity: No new patents since 1994 — supply is fixed and diminishing

The Golden West represents a rare opportunity to own a true piece of the American West with full property rights.

Why Buy Through Mountain Man Mining?

• 7+ years in business with hundreds of successful claim transfers
• Verified listings — every claim is confirmed before listing
• All paperwork handled — no guesswork, no missed deadlines
• Free consultations — talk through the claim, the process, and your goals before you buy
• Post-sale support — we're available to answer questions even after you own it
